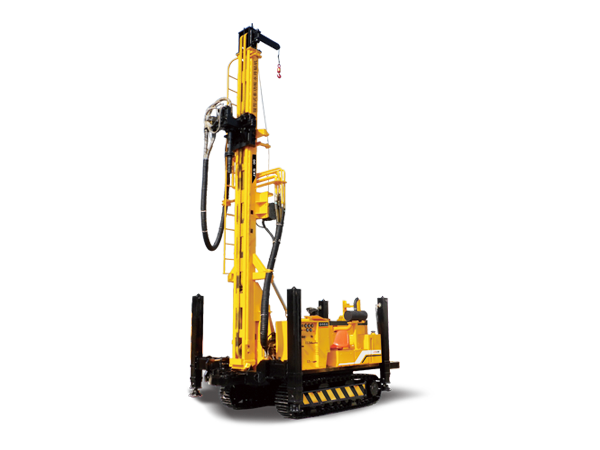

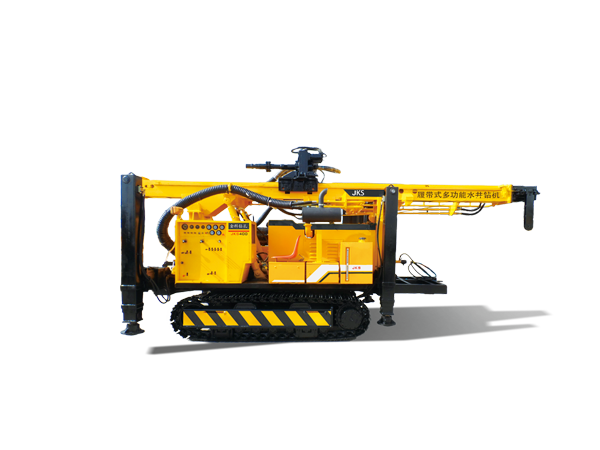

JKS500B Crawler Mounted Versatile Well Drilling Rig

A new, efficient and versatile hydraulic rig.
Site Condition

It is mainly applicable to the drilling process of wells, monitor boreholes and geothermal boreholes.

  • Product Features
  • Technology Parameter
Product Features

JKS500B crawler mounted versatile well drilling rig is a new, efficient and multifunctional drill rig, mainly applicable to all kinds of drilling process of wells, monitor boreholes, geothermal boreholes, grouting holes of cofferdam, dam and reinforced base, as well as long hole drilling of open pit, anchor reinforcement and defense project.

The rig equips with powerful hydraulic motor, heavy-duty hydraulic drilling arm and high pressure DTH percussive hammer, and its drilling speed is faster than other type of rigs.

Technology Parameter
Borehole Diameter Φ105-Φ350mm
Borehole Depth 500m
Working Air Pressure 1.05-4.5MPa
Air Consumption 16-60m?/min
Rod Diameter Φ89mm, Φ102mm, Φ114mm
Maximum Rod-Changing Length 4.5m
Grade Ability 15?
Winch System ( optional main winch & standard tooling winch)
Lifting Force of Tooling Winch 1.5T
Lifting Height 8m
Feed System
Axial Pressure ±10T
Lifting Force 25T
Rotation Torque 10000N.m
Rotation Rate 0-80rpm (first gear)
0-40rpm (second gear)
Weight 13.5T
Dimension (L x W x H) 8100mm x 2250mm x 3050mm
